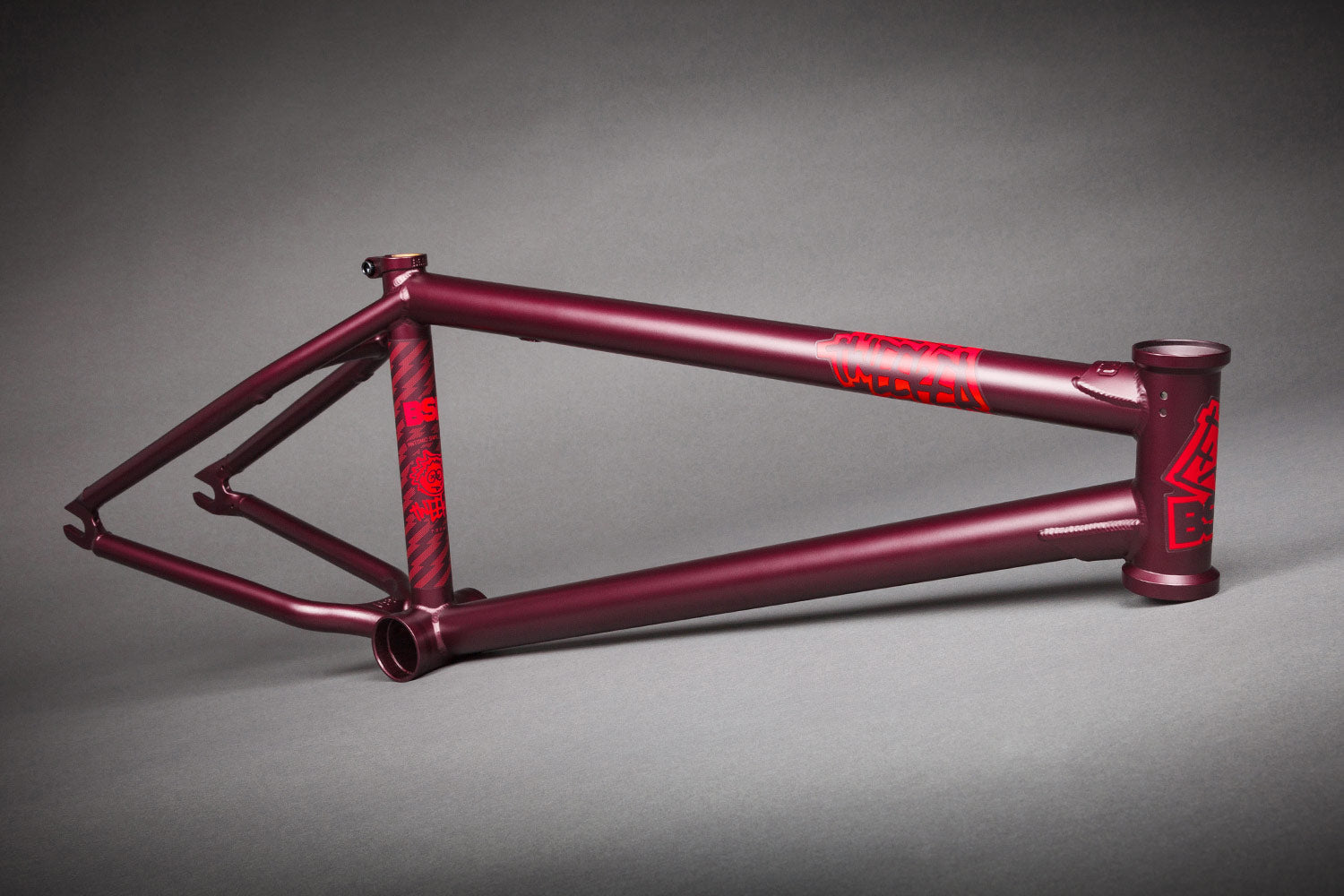

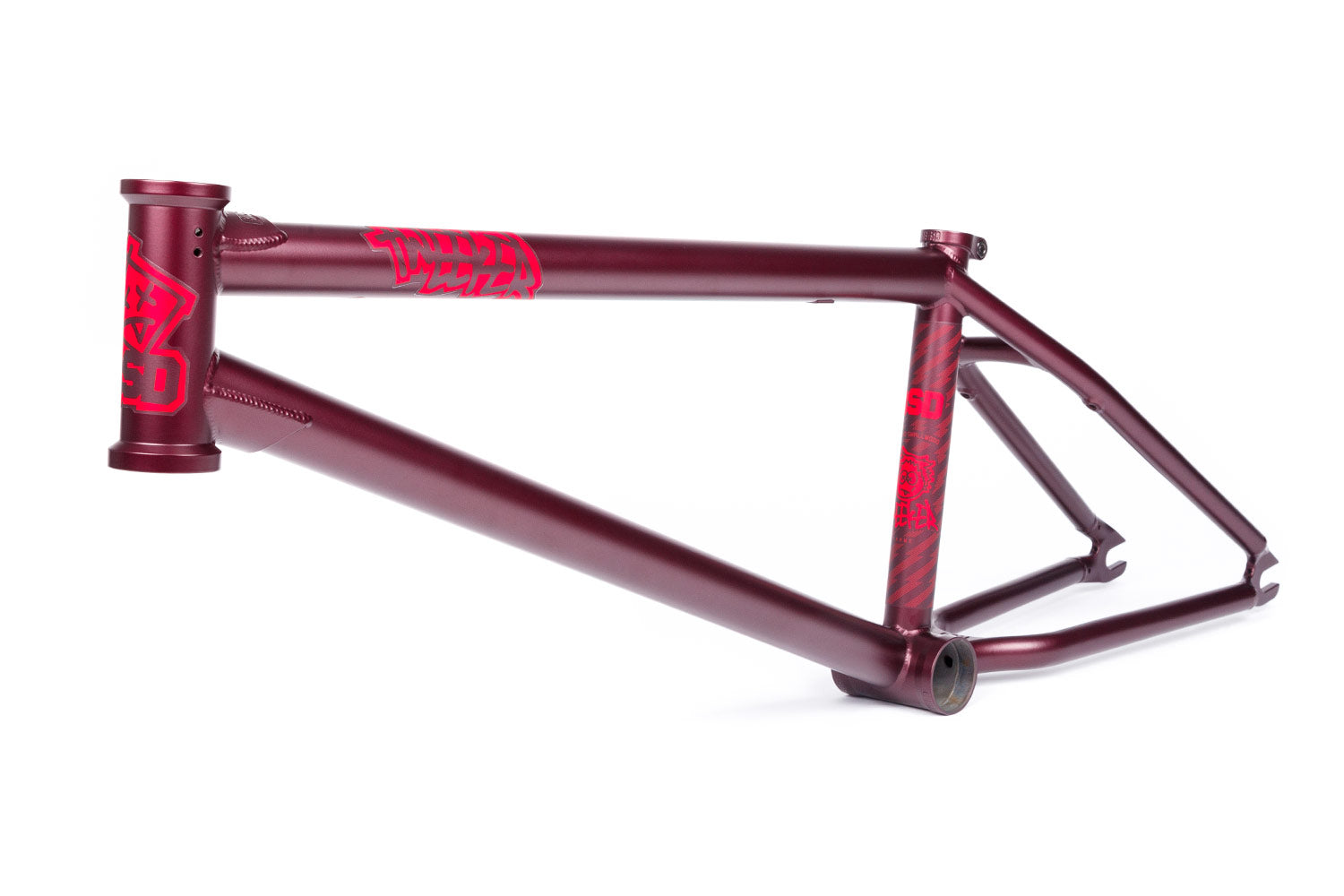

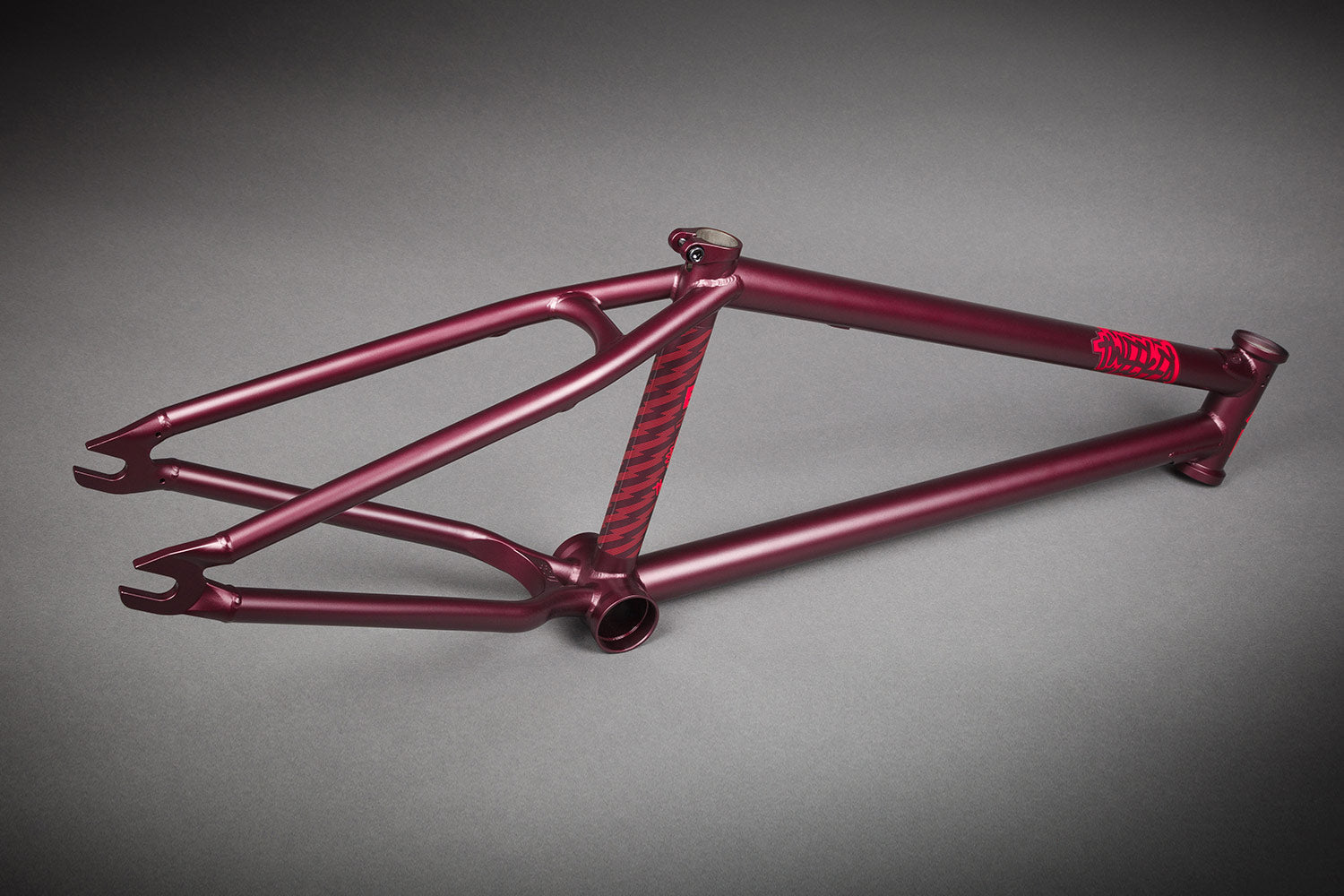

BSD Tweeker FrameBlackCherry Colored Funk
Antonio Smallwood's signature BSD frame delivers fast, technical street geometry for a new generation of riders. Toni is part of the next wave of BSD pros, and this frame proves it. Short, snappy, and built to tweek!
Featuring a super short 12.6-13.1" back end, a steep 75.6 degree head angle, a 72 degree seat angle to aid with pinching the seat on barspins and is available in toptube sizes 20.6", 20.9" and 21.2”.
Features

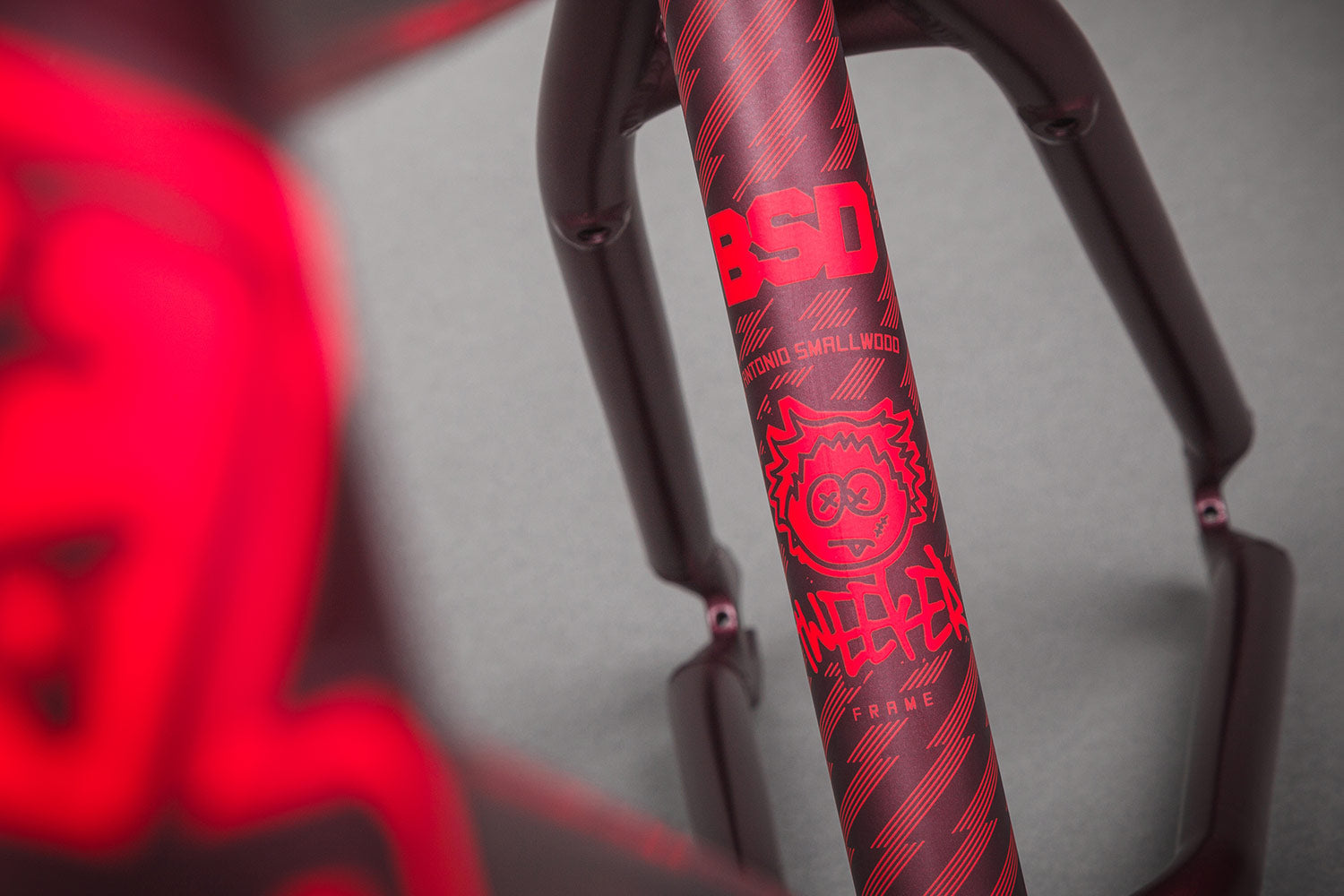

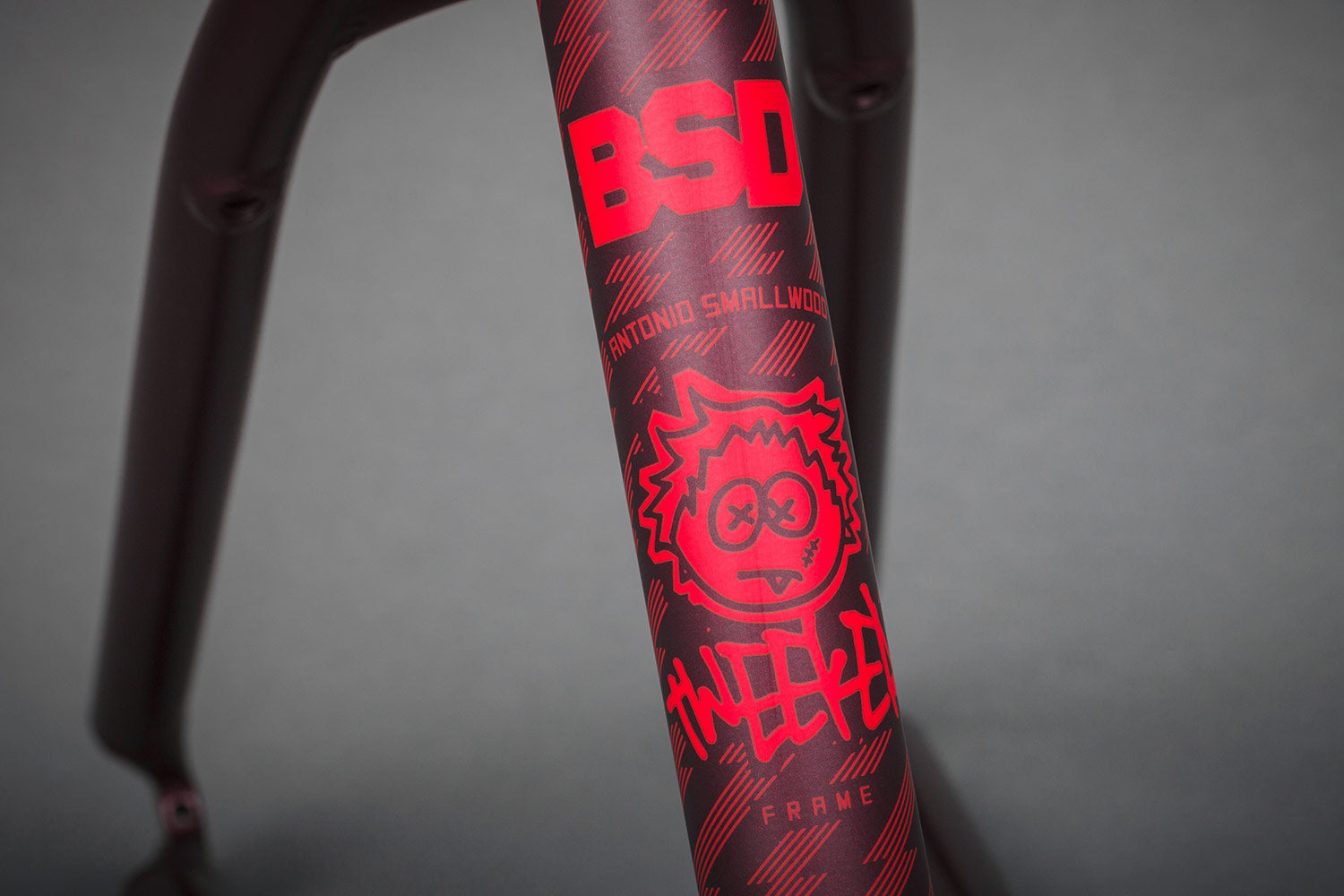

- Antonio Smallwood signature
- Sanko Japanese seamless 4130 CrMo triple butted tubing

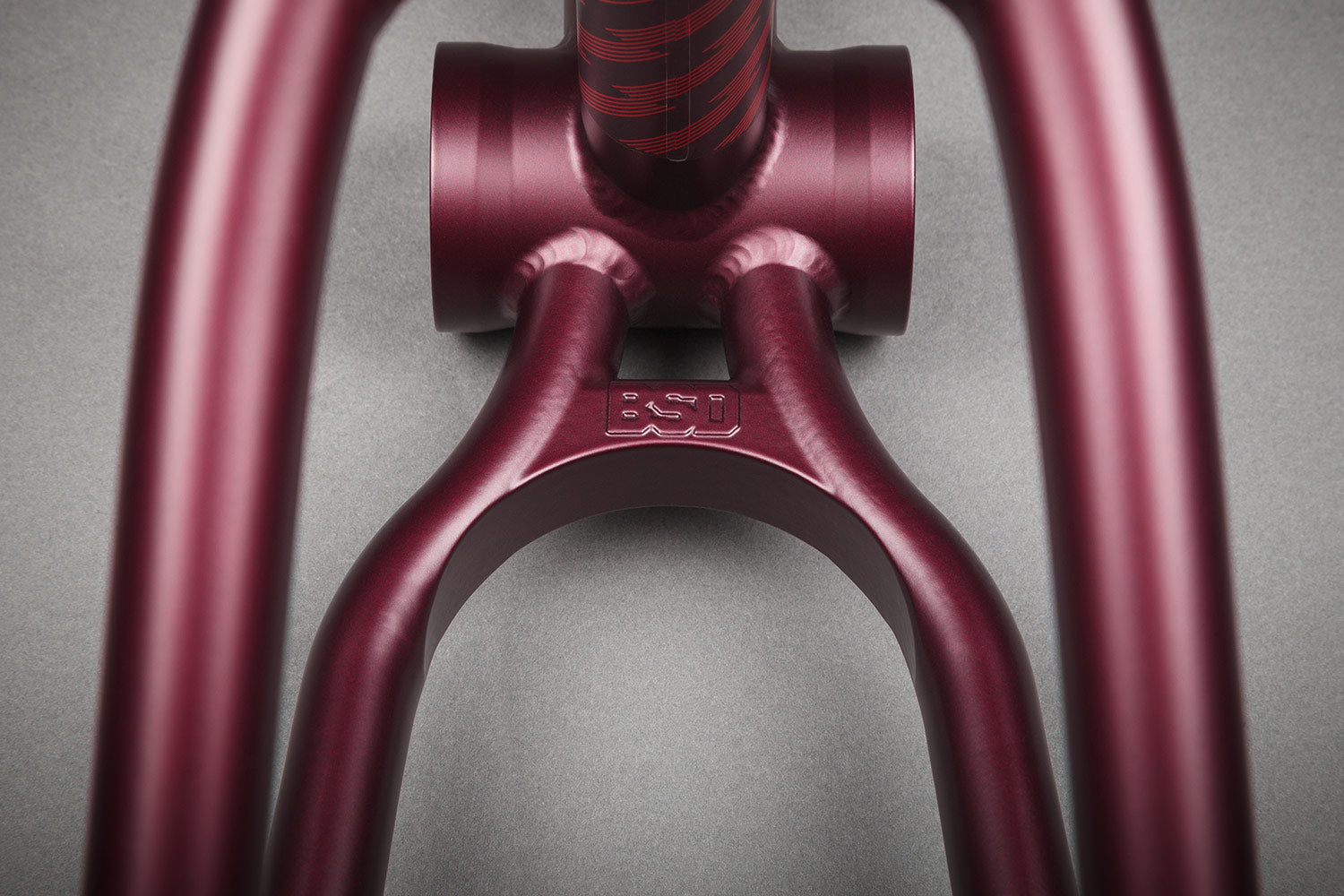

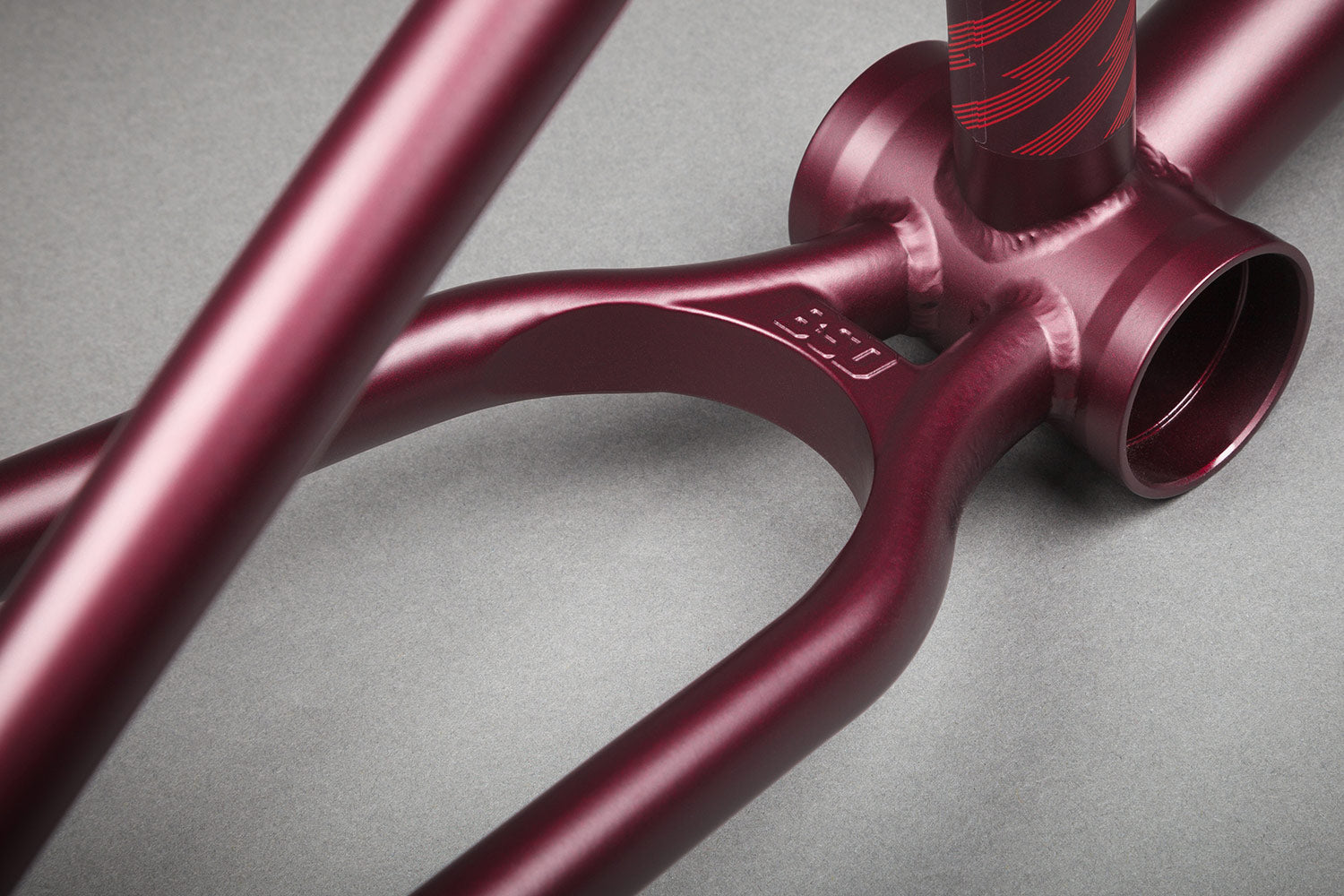

- Invest Cast Yoke: By using invest casting we were able to create a chainstay yoke which creates more clearance for the tire for when your wheel is slammed. Also because this part is cast and heat treated it strengthens the rear end of the frame by creating a more rigid junction.

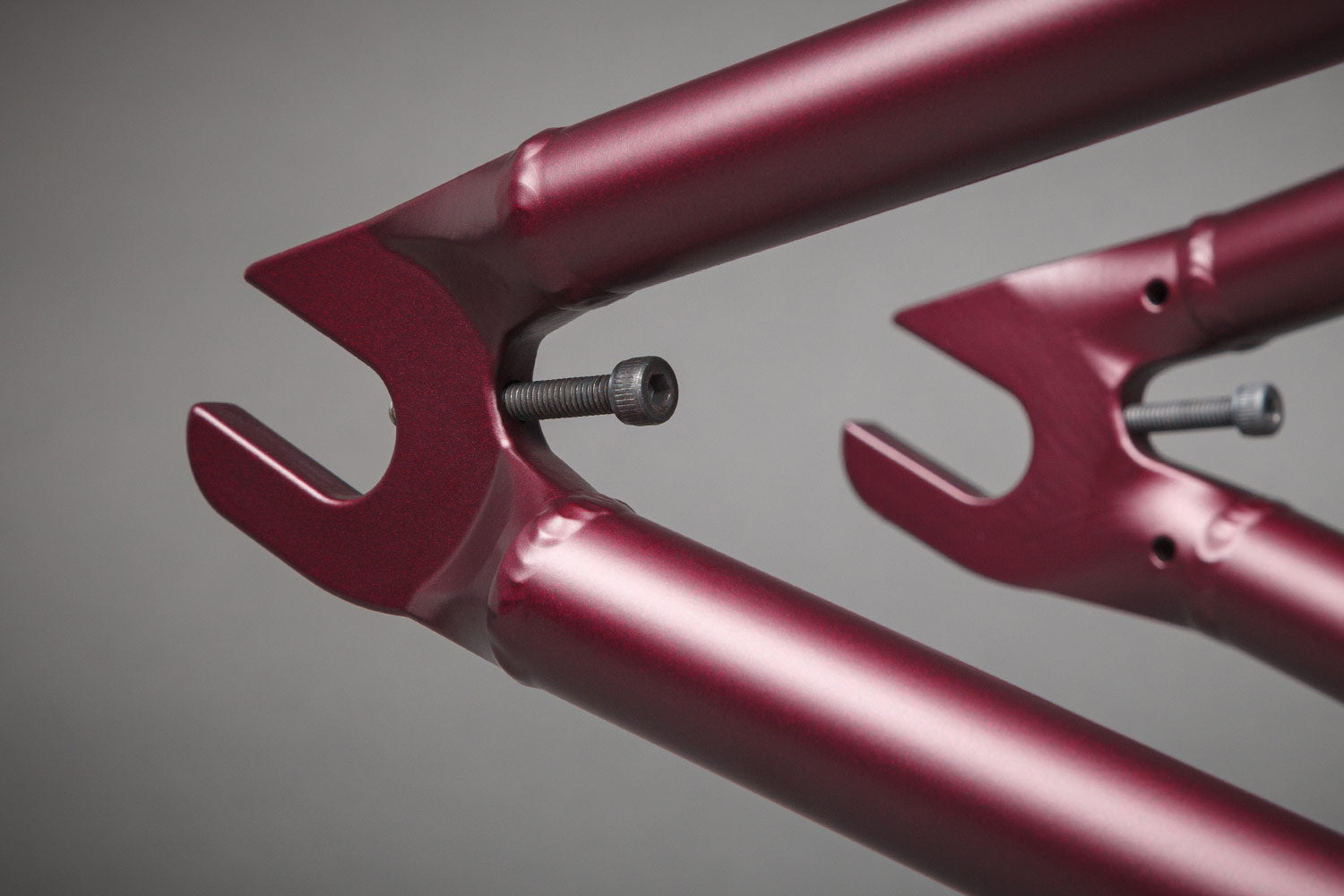

- Invest Cast Dropouts: The dropout is cast as one piece, much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there are integrated chain tensioner bolts inside.

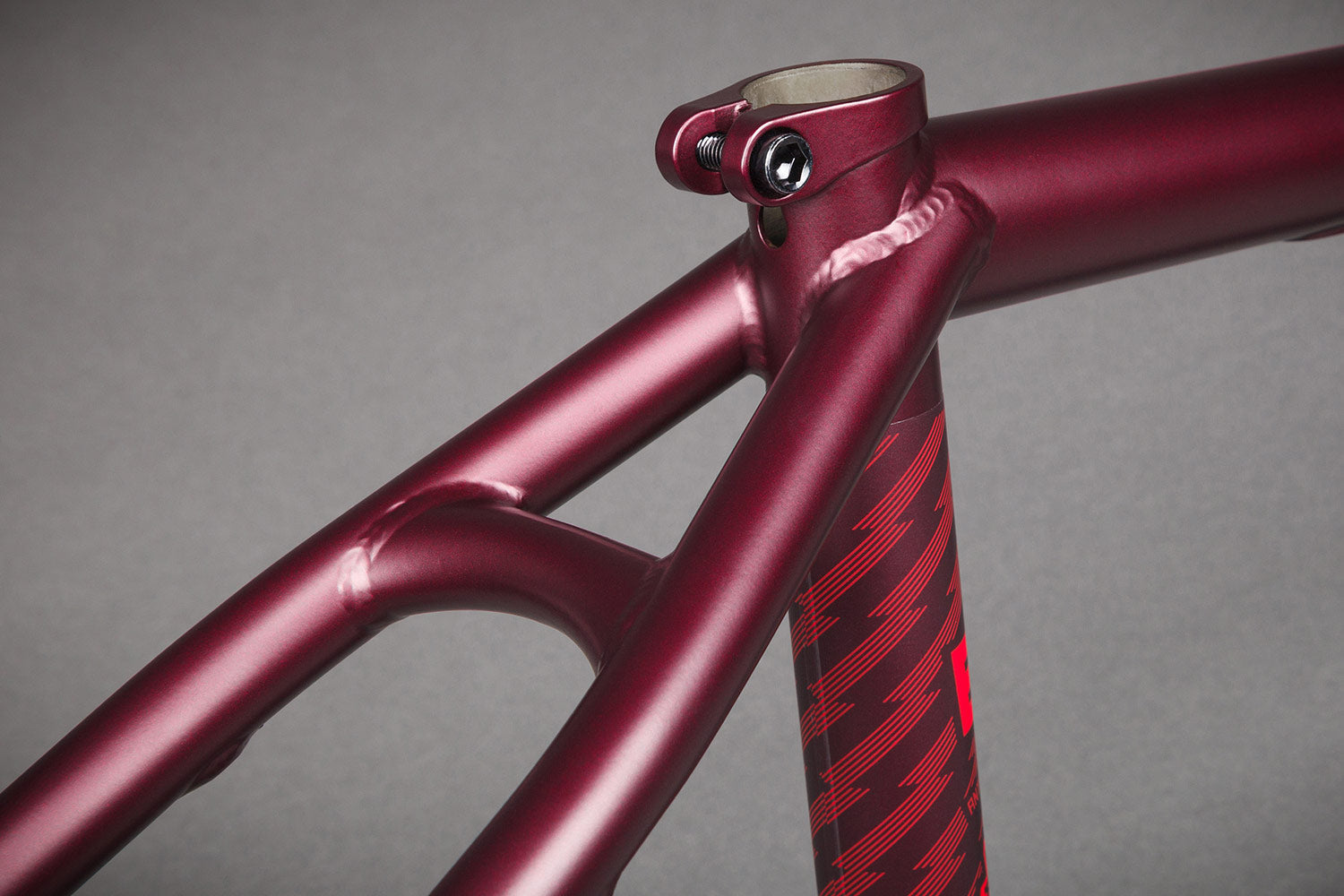

- 72° Seat Tube Angle: 72° seat tube angle on the Tweeker frame places the seat further forward compared to a standard 71° angle, making it easier to pinch the seat for barspin tricks..
Specs
Top Tube Lengths: 20.6", 20.89", or 21.2"

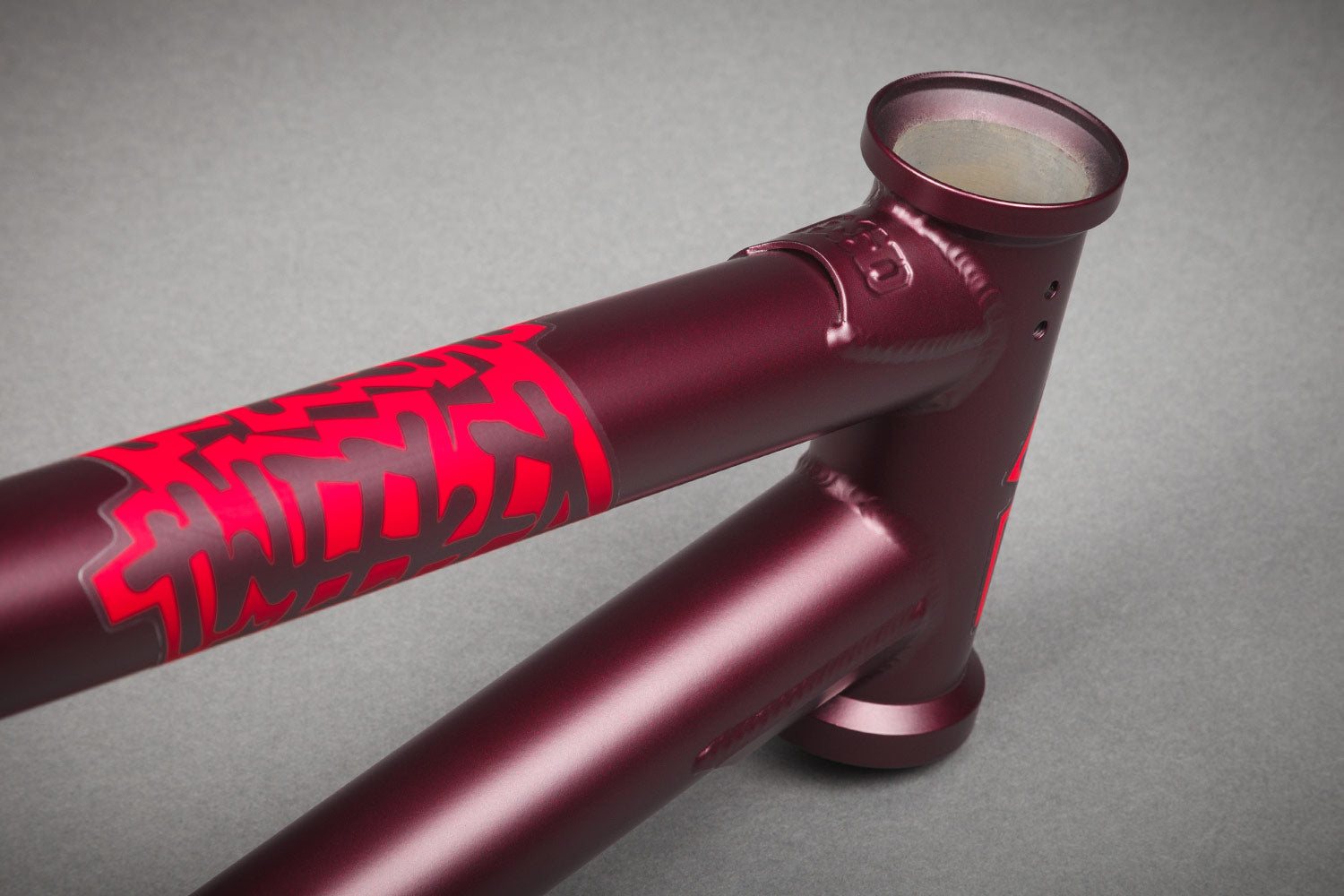

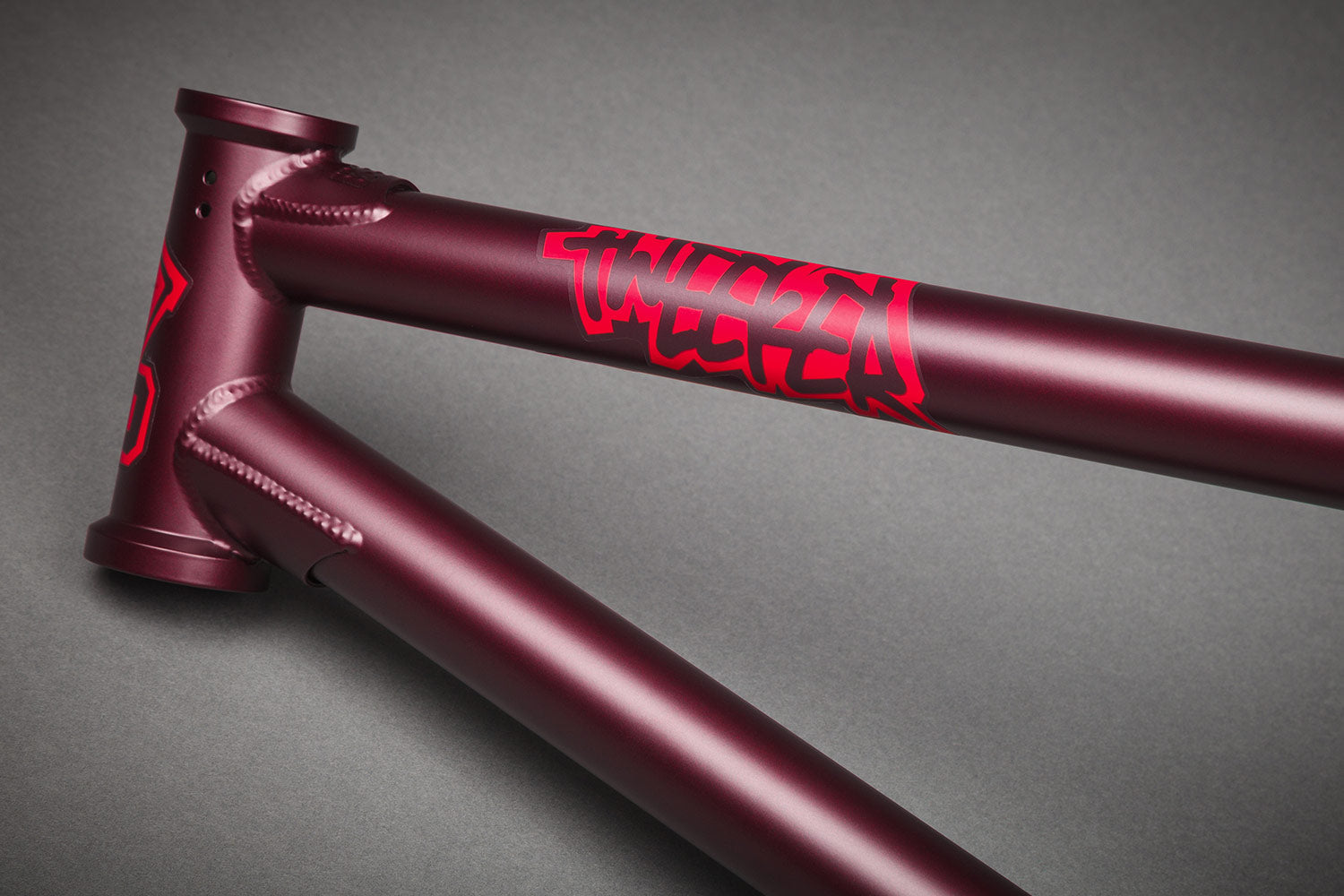

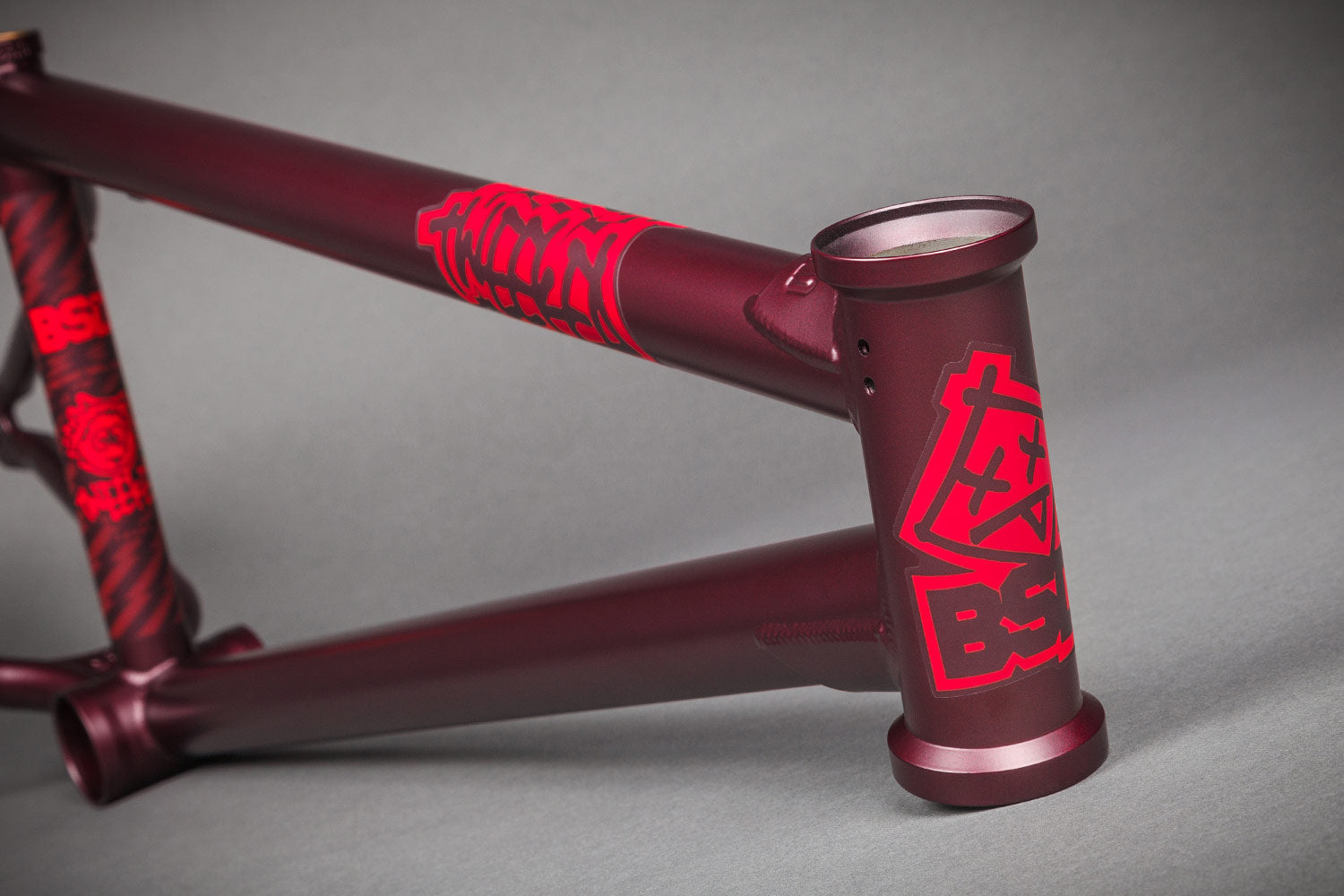

Head Tube Angle: 75.6°

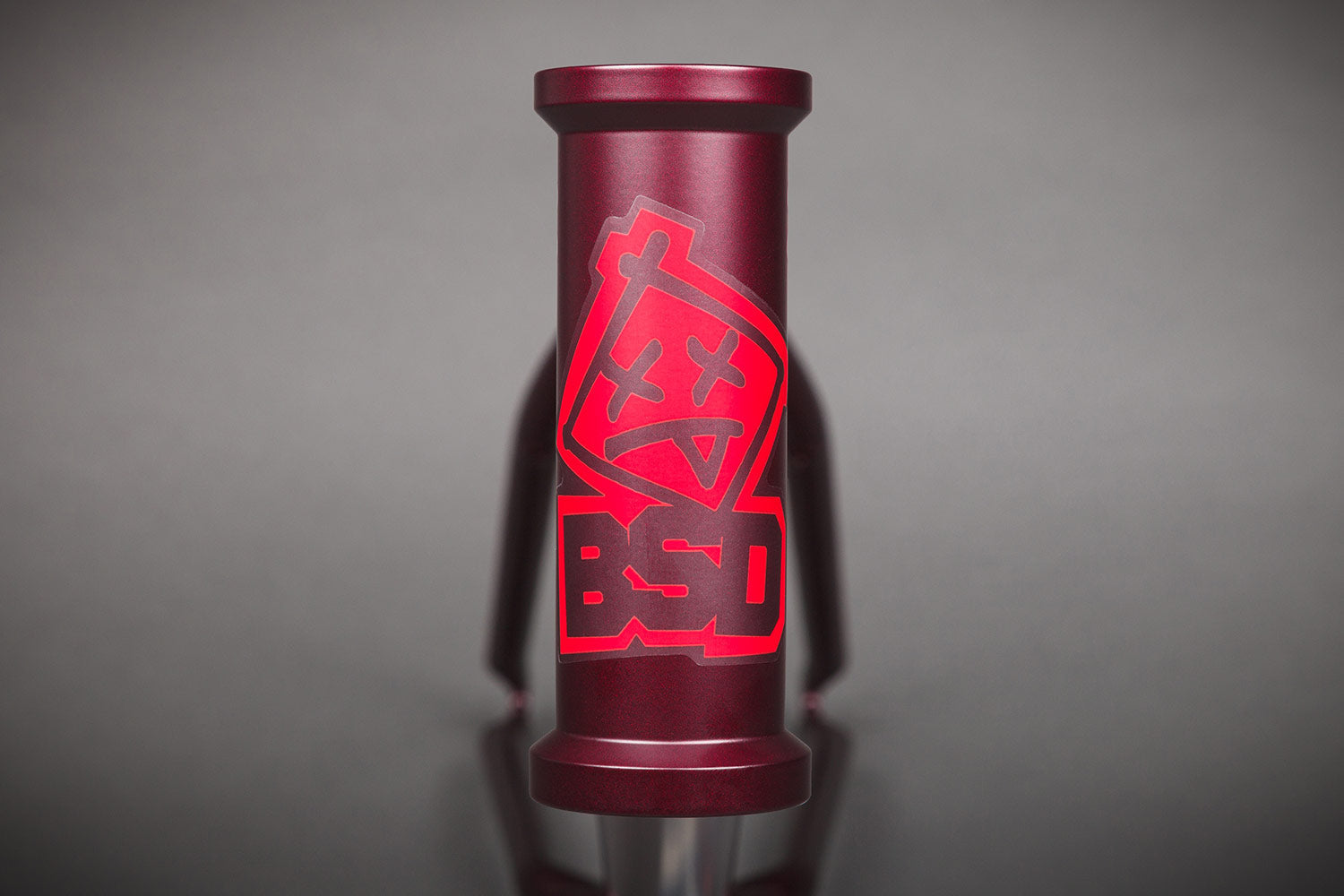

Head Tube Length: 117mm
Seat Tube Angle: 72°
Chainstay Length: 12.6-13.1"
BB Height: 11.7”
Standover: 9.1"
Weight: 5lbs
Brake Mounts: Removable (brake kit available seperately)
---
*BSD brake mount kit available separately.
